Disguise EX range
EX range

Pixel-Perfect Playback

Designed for live events and installations looking for a powerful yet accessible video playback solution, with the unbeatable performance and flexibility of the full Disguise ecosystem.

Your gateway to Disguise

The EX range is the perfect entry point into the Disguise ecosystem, providing pixel perfect video playback in a modular scalable architecture.

Our EX media servers will deliver unmatched performance and creative flexibility, allowing more creatives to work with the most advanced live visual experience platform in the world.

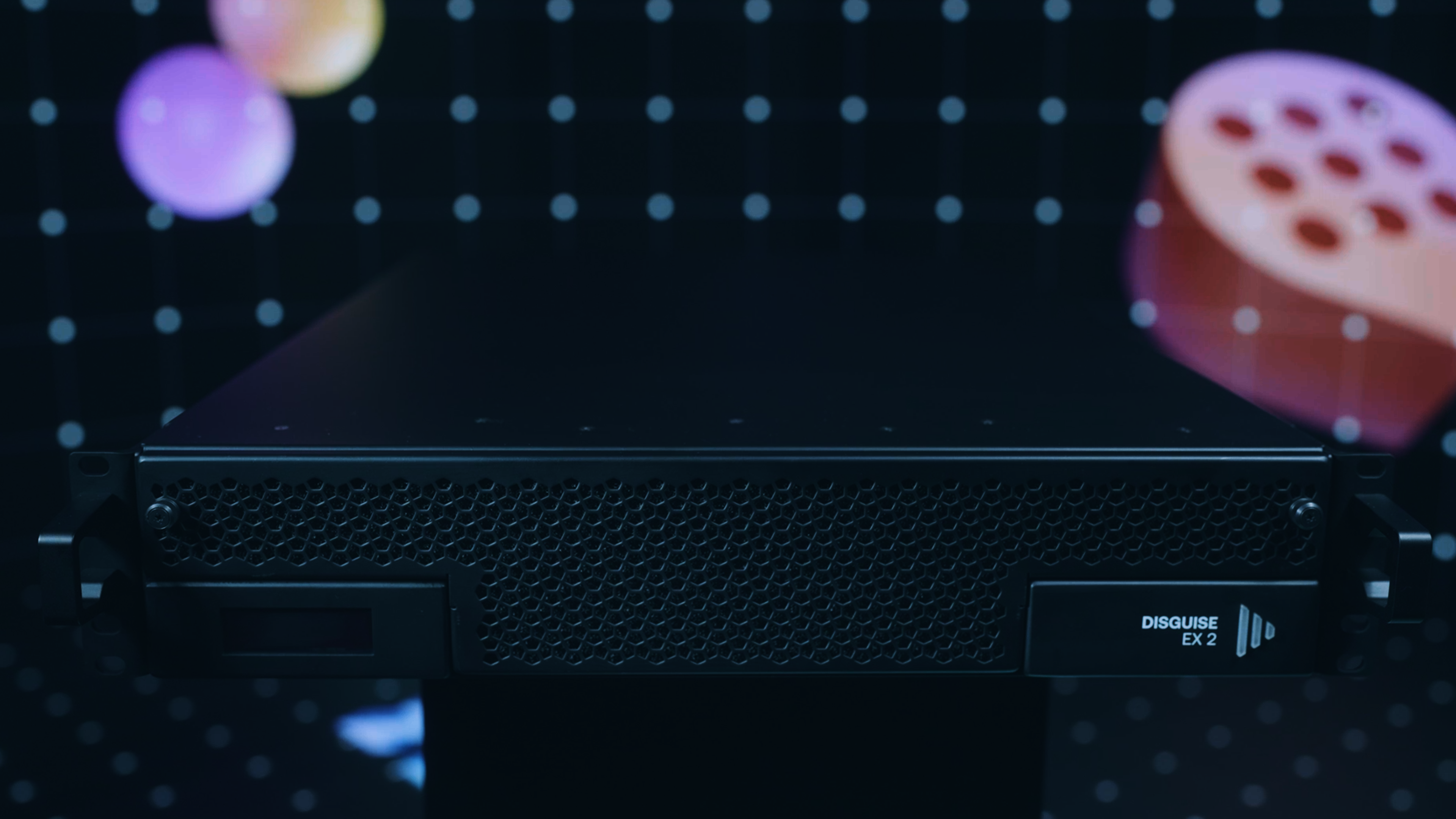

Disguise EX 2
BENEFITS

Why Choose EX?


Versatile

From live shows and corporate events to fixed installations, the EX offers unmatched playback capabilities to meet your project's demands.


Durable

Engineered in a ruggedised 2U chassis, the EX is built for long-lasting durability and seamless integration into any setup.


Scalable

Easily scale your production with the EX. Run it as part of a network for redundancy and failover with other EX machines.



Control

The EX can also run as a dedicated director and editor with the VX and GX range, distributing video playback across complex systems.



Cutting-edge

Featuring latest-generation technology, including a PCIe 5.0 motherboard and Nvidia Ada Lovelace GPU architecture, for increasingly complex visual effects.




Integrated

Unlock our Designer pixel mapping software and reap all the benefits of one integrated workflow from concept to delivery.

INDUSTRIES

Where is the EX Range Used

Installations and immersive experiences

The EX range is the go-to solution for system integrators and design consultants looking for a highly performant, reliable yet accessible machine to power any permanent installation such as museums, theme parks, cruise ships and immersive spaces, driven by the most advanced and integrated software and best in class 24/7/365 support.

London Lightroom powered by Disguise
Theatre and other live shows

Live events rental companies and screens producers can power an increasingly varied number of live shows with the EX range. Particularly suited for theatre shows that usually don’t require real-time video yet still want to deliver high-res 4K content and have reduced rack space.

Stranger Things Musical powered by Disguise
Corporate and branding events

Corporate events like keynotes and tech summits can deliver seamless and visually impactful presentations thanks to the EX’s smooth playback of high-quality content, engaging audiences with crystal-clear visuals.

Disguise at SXSW
Installations and immersive experiences

The EX range is the go-to solution for system integrators and design consultants looking for a highly performant, reliable yet accessible machine to power any permanent installation such as museums, theme parks, cruise ships and immersive spaces, driven by the most advanced and integrated software and best in class 24/7/365 support.

London Lightroom powered by Disguise
Theatre and other live shows

Live events rental companies and screens producers can power an increasingly varied number of live shows with the EX range. Particularly suited for theatre shows that usually don’t require real-time video yet still want to deliver high-res 4K content and have reduced rack space.

Stranger Things Musical powered by Disguise
Corporate and branding events

Corporate events like keynotes and tech summits can deliver seamless and visually impactful presentations thanks to the EX’s smooth playback of high-quality content, engaging audiences with crystal-clear visuals.

Disguise at SXSW
Installations and immersive experiences

The EX range is the go-to solution for system integrators and design consultants looking for a highly performant, reliable yet accessible machine to power any permanent installation such as museums, theme parks, cruise ships and immersive spaces, driven by the most advanced and integrated software and best in class 24/7/365 support.

London Lightroom powered by Disguise
Theatre and other live shows

Live events rental companies and screens producers can power an increasingly varied number of live shows with the EX range. Particularly suited for theatre shows that usually don’t require real-time video yet still want to deliver high-res 4K content and have reduced rack space.

Stranger Things Musical powered by Disguise
Corporate and branding events

Corporate events like keynotes and tech summits can deliver seamless and visually impactful presentations thanks to the EX’s smooth playback of high-quality content, engaging audiences with crystal-clear visuals.

Disguise at SXSW
EX RANGE

What's Included

EX 2

The EX 2 features two 4K video outputs and is the ideal entry point into the Disguise ecosystem, suited for small-scale installations and live shows requiring a ‘multiple of 2’ video output capability with no video capture and the ability to scale out content over time.

See EX 2 specs
Disguise EX 2 front panel

EX 2C

Including the same technical specifications as the EX 2, the EX 2C also features video capture as standard with up to 1x 4K DCI or 4x Full-HD video capture inputs.

See EX 2C specs
Disguise EX 2C front panel

EX 3+

The most powerful in our EX range, the EX 3+ features three 4K video outputs and up to 2x 4K DCI or 8x Full-HD video capture inputs. Ideally suited for mid-scale installations and shows delivering impactful content via LED walls or projectors at scale, also requiring a physical video input to enable 4K cameras to be used for audience interaction.

See EX 3+ specs
Disguise EX 3+ front panel

EX 3

The first release in our EX range, the EX 3 comes with three video outputs and no video capture capability. It has made its debut at the 2023 Cannes Film Festival powering the MURALS digital exhibition, enabling the content producers to set up an HDR 10-bit DPX image sequence playback to ensure a high-fidelity display, blended with a spatial audio surround system to create a truly immersive, multi-sensory experience.

See EX 3 specs
Disguise EX 3

EX 2

The EX 2 features two 4K video outputs and is the ideal entry point into the Disguise ecosystem, suited for small-scale installations and live shows requiring a ‘multiple of 2’ video output capability with no video capture and the ability to scale out content over time.

See EX 2 specs
Disguise EX 2 front panel

EX 2C

Including the same technical specifications as the EX 2, the EX 2C also features video capture as standard with up to 1x 4K DCI or 4x Full-HD video capture inputs.

See EX 2C specs
Disguise EX 2C front panel

EX 3+

The most powerful in our EX range, the EX 3+ features three 4K video outputs and up to 2x 4K DCI or 8x Full-HD video capture inputs. Ideally suited for mid-scale installations and shows delivering impactful content via LED walls or projectors at scale, also requiring a physical video input to enable 4K cameras to be used for audience interaction.

See EX 3+ specs
Disguise EX 3+ front panel

EX 3

The first release in our EX range, the EX 3 comes with three video outputs and no video capture capability. It has made its debut at the 2023 Cannes Film Festival powering the MURALS digital exhibition, enabling the content producers to set up an HDR 10-bit DPX image sequence playback to ensure a high-fidelity display, blended with a spatial audio surround system to create a truly immersive, multi-sensory experience.

See EX 3 specs
Disguise EX 3

EX 2

The EX 2 features two 4K video outputs and is the ideal entry point into the Disguise ecosystem, suited for small-scale installations and live shows requiring a ‘multiple of 2’ video output capability with no video capture and the ability to scale out content over time.

See EX 2 specs
Disguise EX 2 front panel

EX 2C

Including the same technical specifications as the EX 2, the EX 2C also features video capture as standard with up to 1x 4K DCI or 4x Full-HD video capture inputs.

See EX 2C specs
Disguise EX 2C front panel

EX 3+

The most powerful in our EX range, the EX 3+ features three 4K video outputs and up to 2x 4K DCI or 8x Full-HD video capture inputs. Ideally suited for mid-scale installations and shows delivering impactful content via LED walls or projectors at scale, also requiring a physical video input to enable 4K cameras to be used for audience interaction.

See EX 3+ specs
Disguise EX 3+ front panel

EX 3

The first release in our EX range, the EX 3 comes with three video outputs and no video capture capability. It has made its debut at the 2023 Cannes Film Festival powering the MURALS digital exhibition, enabling the content producers to set up an HDR 10-bit DPX image sequence playback to ensure a high-fidelity display, blended with a spatial audio surround system to create a truly immersive, multi-sensory experience.

See EX 3 specs
Disguise EX 3

EX 2

The EX 2 features two 4K video outputs and is the ideal entry point into the Disguise ecosystem, suited for small-scale installations and live shows requiring a ‘multiple of 2’ video output capability with no video capture and the ability to scale out content over time.

See EX 2 specs
Disguise EX 2 front panel

EX 2C

Including the same technical specifications as the EX 2, the EX 2C also features video capture as standard with up to 1x 4K DCI or 4x Full-HD video capture inputs.

See EX 2C specs
Disguise EX 2C front panel

EX 3+

The most powerful in our EX range, the EX 3+ features three 4K video outputs and up to 2x 4K DCI or 8x Full-HD video capture inputs. Ideally suited for mid-scale installations and shows delivering impactful content via LED walls or projectors at scale, also requiring a physical video input to enable 4K cameras to be used for audience interaction.

See EX 3+ specs
Disguise EX 3+ front panel

EX 3

The first release in our EX range, the EX 3 comes with three video outputs and no video capture capability. It has made its debut at the 2023 Cannes Film Festival powering the MURALS digital exhibition, enabling the content producers to set up an HDR 10-bit DPX image sequence playback to ensure a high-fidelity display, blended with a spatial audio surround system to create a truly immersive, multi-sensory experience.

See EX 3 specs
Disguise EX 3
TECH SPECS

The Power of the EX

EX Range

Disguise EX front panel annotated drawing

System connectivity I/O

Video output

1x DisplayPort 1.4 (GUI)

2x DisplayPort 1.4 (Outputs) (EX 2, EX2C)

3x DisplayPort 1.4 (Outputs) (EX 3+)



Video input

Video input via NDI only (EX 2)

Up to 1x 4K DCI input or 4x Full-HD inputs (EX 2C) /

Up to 2x 4K DCI inputs or 8x Full-HD inputs (EX 3+) via:

  • 1x 12G or 4x 3G SDI (HD-BNC connectors)
  • 1x HDMI 2.0 capture (HDMI connector)



Audio I/O

N/A



General network

2x 10Gb/sec Ethernet



High-speed network

2x 100Gb/sec (QSFP28) (EX 2, EX 2C, EX 3+)



Hardware specs

CPU

AMD EPYC 2.45Ghz (EX 2, EX 2C, EX 3+)



GPU

NVIDIA RTX 4000 Ada (EX 2, EX 2C, EX 3+)



Voltage

100-240V, 50-60Hz

for countries with variable power supply we recommend a UPS to provide a consistent voltage



Mounting system

2U 19" rack mount



Storage

1x 1.92TB SSD (EX 2, EX 2C)

1x 3.84TB SSD (EX 3+)

upgrades available



Operating system

Windows 11 IoT Enterprise GAC (EX 2, EX 2C, EX 3+)



WHAT OUR CUSTOMERS SAY
The Disguise EX 2C media server can efficiently control multiple projectors. There were also many changes and adjustments that occurred on site, but Disguise's flexible mapping correction functionality allowed us to make quick and accurate corrections.
Shoichi Ishida

System Integrator and Programmer at Toei Techno International

SUPPORT

With You All the Way

Benefit from our unbeatable support packages with global service centres and round-the-clock care, ensuring your production will run without a hitch.

Learn more
Disguise EX 2

Speak to an expert

Get in touch with our team to find the right EX solution to power your vision.
