Supercharge Your Connectivity
Fabric is a preconfigured network switch built to connect your VX and RX servers at the highest bandwidth so that each frame is delivered accurately.
Fast Forward with Fabric
Virtual Production Shoot for BMW China
When BMW China made its first foray into virtual production for a television commercial for its i3 electric Sedan, the production team at BLUEBOX xR Studios relied on the Disguise Virtual Production workflow, featuring two Disguise VX 4 media servers and four RX II render nodes connected by Fabric to serve as the entire control system for the groundbreaking commercial shoot.

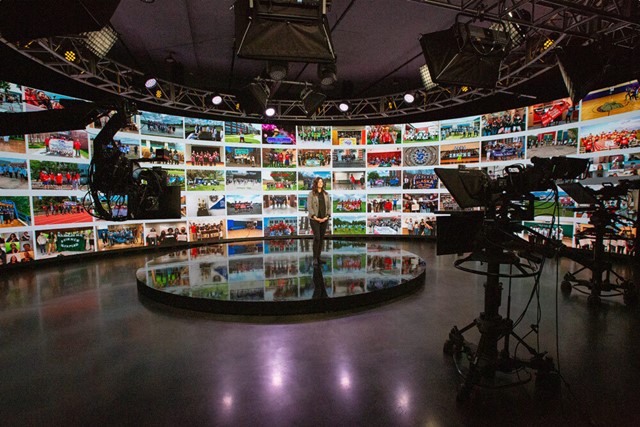

State-of-the-Art Teaching Facility at SCAD
Savannah College of Art and Design's state-of-the-art extended reality stage enables numerous students from different majors to work with industry-leading technology to become designers and film producers of the future. This first full-scale, turnkey, collegiate xR volume is powered by Disguise VX 4 and RX II media servers, all connected through Fabric.
Immersive Real-Time xR Shoots
Hong Kong’s biggest music video shot in extended reality to date, featured virtual scenes set in a spaceship, a desert, and on a utopian planet for local superstars Sing Sing Rabbit and Kelly Chen. The Disguise Extended Reality workflow, powered by the VX 4+ and RX II media servers, connected through Fabric, helped turn the artists' vision for the video into reality.
Why Choose Fabric
Ready to go
Connect to your Disguise systems in minutes - without the need for network engineering knowledge. Fabric is preconfigured to work with RenderStream and all our media servers.
High Bandwidth Networking
Fabric includes up to 64 network ports optimised to work effectively with any Disguise system so you can stream content at 4k over high bandwidth networking.
Fully bundled
Built for powerful and robust performance, Fabric is available in five different bundle types depending on the scale and networking required for your set-up.
The Power of Fabric
System connectivity I/O
- Connector cage
16x QSFP28
- Supported modules and cables
QSFP28, SFP28 short and long range optics
QSFP28 to QSFP28 DAC cable
QSFP breakout cables 100GbE to 4x 25GbE DAC, optical
Hardware specs
- Voltage
100-240V, 50-60Hz
for countries with variable power supply we recommend a UPS to provide a consistent voltage
- Power consumption peak
Typical Power: 94.3W (Typical power with passive cables)
Max power with optical cables: 248.6W (Assuming 3.5W per each QSFP28 port)
- Mounting system
1U 19" rack mount
- Operating system
Mellanox Onyx
- Throughput
3.2Tb/s
- Speed
Default:
1x 1GbE
7x 100GbE
32x 25GbE (Quad Split)
Configurable to:
1/10/25/40/50/100GbE per port

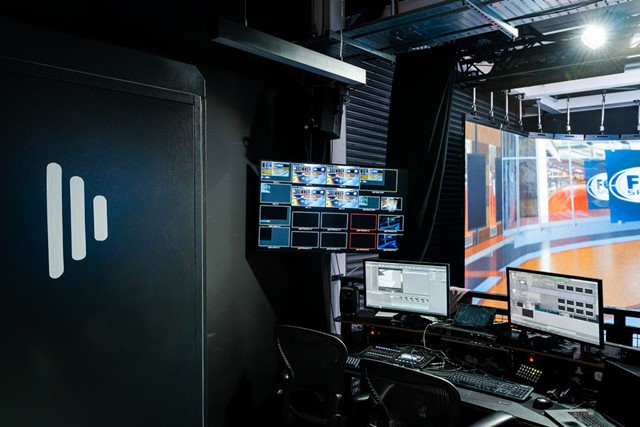

With you all the way
When you add a Fabric to your hardware fleet, you can rely on our unbeatable support packages with global service centres and 24/7 care ensure your production will always run without a hitch.
