Power to scale
Play huge video content
The pro range has been engineered to playback video at higher quality, smoothness, and resolution than ever before.
The latest addition of our vx 1 and vx 2 machines make the pro range the go-to choice for delivering content at any scale, giving you the freedom to build out your technical capacity depending on your production.
Power to go big
Genlock allows you to synchronise multiple machines to create a single large video canvas up to 16K pixels across (per surface).
Built tough
The pro range is designed for tough environments with its ruggedised aluminium chassis, lockable connectors, and TrueCon power.
Creative freedom
Video Format Conversion (VFC) cards allow you to change the video output signal on your server quickly and easily.
vx 4
More in
More out
Engineered to play back video at higher quality, smoothness and resolution than ever before.

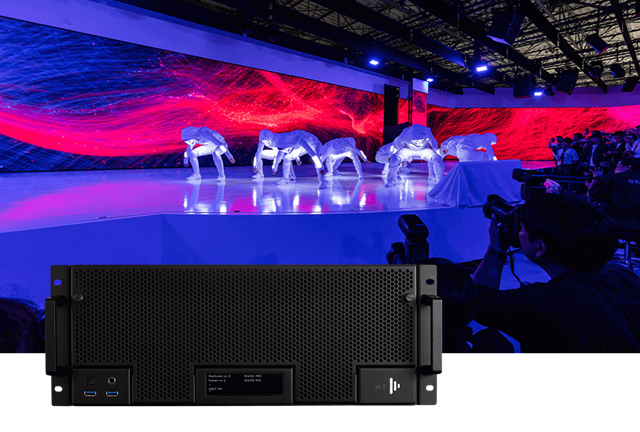

vx 2
Power at scale
From fixed install to xR and virtual production, scale up for any project.
Which pro range server is right for you?
| vx 4 | vx 2 | vx 1 | |
|---|---|---|---|
| CPU | 2x Intel® Xeon® Gold 3.2Ghz | Intel® Xeon® Silver 2.5Ghz | Intel® Xeon® Silver 2.5Ghz |
| Memory | 96GB DDR4 RAM | 48GB DDR4 RAM | 24GB DDR4 RAM |
| Storage | 2x 128GB SSD (Internal System Drives) Up to 4 NVMe Drives 4x 2TB Removable NVMe SSD (default) |
1x 4TB Removable NVMe SSD (default) | 1x 2TB Removable NVMe SSD (default) |
| Operating system | Windows 10 Enterprise SAC | Windows 10 Enterprise SAC | Windows 10 Enterprise SAC |
| Video input | 4x4K 2160p (16x3G SDI) | 2x4K 2160p (8x3G SDI/2x12G SDI) | 1x4K 2160p (8x3G SDI/1x12G SDI) |
| Video output | 4x VFC Output slots (Ships standard with HDMI 2.0 VFC cards as default (4096 x 2160 max) 1x Displayport 1.2 (GUI) Different VFC cards available |
2x VFC Output slots (Ships standard with HDMI 2.0 VFC cards as default (4096 x 2160 max) 1x Displayport 1.2 (GUI) Different VFC cards available |
1x VFC Output slots (Ships standard with HDMI 2.0 VFC cards as default (4096 x 2160 max) 1x Displayport 1.2 (GUI) Different VFC cards available |
| Audio output | RME Professional | RME Professional | RME Professional |
| vx 4 | vx 2 | vx 1 |
