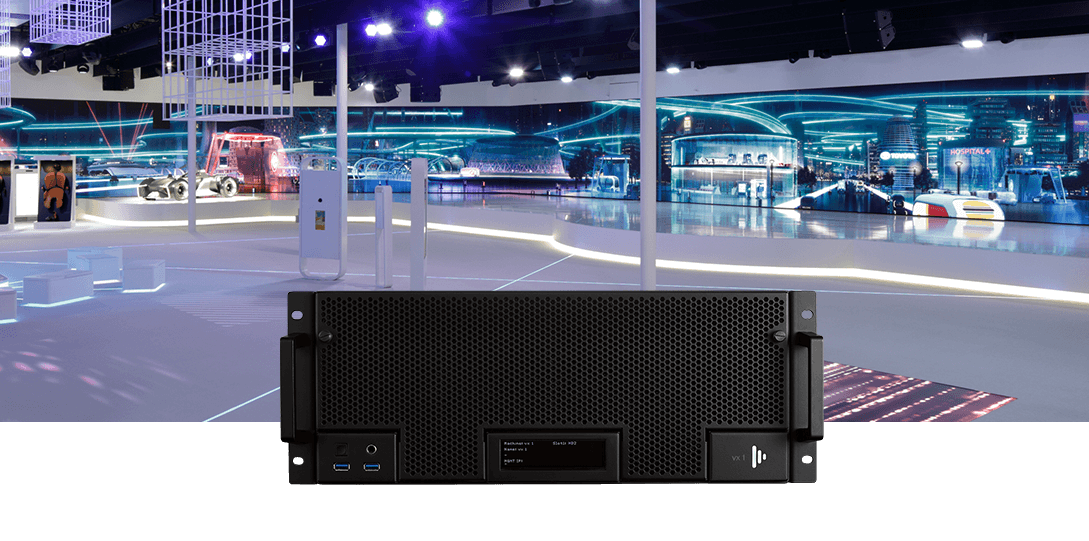

vx 1

The perfect addition to any small production, the all-new vx 1 allows any project, of any size, to benefit from the power of the pro range.

vx 1

Interested in learning more?

speak to our solutions team

Power that's flexible.

The vx 1 has all the functionality of our other pro range machines with a single VFC slot.

Capable of capturing up to 12G input, the vx 1 can be upgraded from its single 4K or four HD outputs to our vx 2 machine anytime you chose.

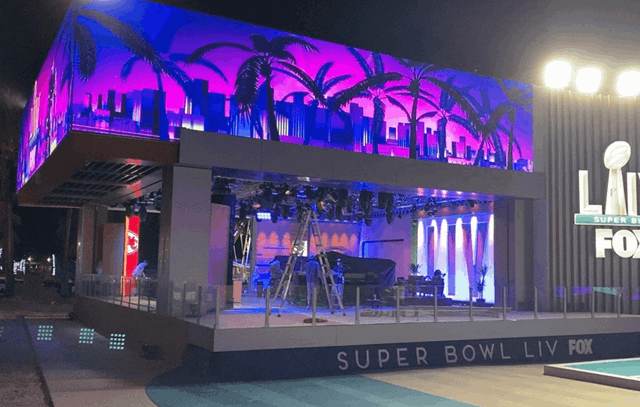

Product Page Overview Vx1 Disguise Image1

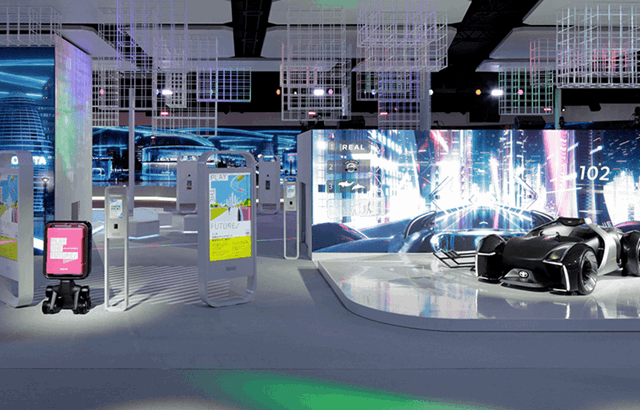

Product Page Overview Vx1 Disguise Image2


Lossless video @ 60fps



Fast media transfer

More networking,
more storage

The vx 1 has dual 25 Gb/sec and dual 10 Gb/sec ethernet ports, enabling faster media file transfer and higher resolution networked live video capture.

Extending into new xR worlds

Explore the possibilities of xR. Partner your vx 1 with the rx for the ultimate xR bundle; utilising the latest disguise software and RenderStream to host real-time content from the render engine to suit your project.

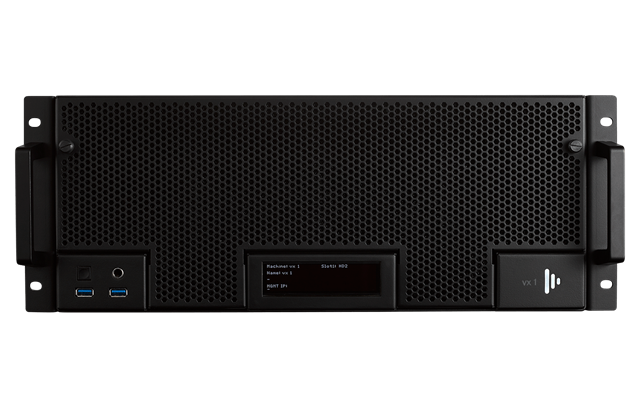

Product Page Overview Vx1 Disguise
Vx4 SMC R19 Heroimage Disguisepng

Easy identification

Set up your vx servers with the System Management Controller (SMC). Access the web portal to see chassis, system and networking stats on a single pane of glass. Colour LED and blink modes help identify servers easily.

Control your system

Easily identify servers and system details on the physical machine by setting up the display information on the front OLED.

Vx4 Frontpanel R19 Heroimage Disguise

Powered by RenderStream

The vx range is a powerful content playback and compositing servers. At the core of the disguise ecosystem, the vx media servers receive content with tracking data via RenderStream and output scenes onto the stage with pixel perfection.

Cluster Rendering

Deliver high fidelity graphics safely by distributing rendering power across multiple render nodes.

Seamless synchronisation

Synchronise your physical stage with your virtual set via hardware, software, content engine and camera tracking

Unreal workflows

Immediately impact your productivity with dynamic control of the engine and automatic workflows on Unreal Engine, Notch and others.

Enquire about the vx 1

Complete the form to learn more about the possibilities of the vx 1. By completing the form you will receive our latest software and hardware developments, insights and case studies on how our community are using this new technology to advance their production workflow.

Video playback

Optimised for playing uncompressed 4K60 using its high-performance NVMe drive; as well as the capability of playing lossless 10-bit video.

Capture capability

The vx 1 can capture either four 3G-SDI or one 4K source (2160p60) via quad-link 4K or single 12G-SDI.

Faster networking

Even more network bandwidth with dual 25GbE and dual 10GbE ports; enabling faster media file transfer and higher resolution networked live video capture.

Faster storage

The vx 1 comes with high-performance NVMe 1.92TB* as standard.

* Storage upgrades available

VFC Technology

The vx 1 ships with one HDMI 2.0 VFC output card by default.

Technical specifications

System Connectivity - I/O Video Output 1x Displayport 1.2 (GUI)
1x VFC Output Slots
Ships standard with HDMI 2.0 VFC cards (4096 x 2160 max)
Different Video Format Conversion Cards also available, refer to VFC specifications
Video Input 1x 12G-SDI
4x 3G-SDI or 1x 2160p60 (Quad Split)
(HD-BNC connectors)
Video Sync 1x BNC Genlock
Audio RME Professional
Analogue Audio 2x Balanced XLR Input
2x Balanced XLR Output
1x 1/4" Headphones Jack
Digital Audio ADAT/SPDIF I/O
MIDI 1x In
1x Out
Media File Specifications Video Playback .mov (anim, DXV, Hap, Hap Q, Hap Alpha, NotchLC)
Still image formats .png, .jpeg, .bmp, .tiff, .tga, .dpx
Audio file formats .mp3, .wav (44.1kHz, 16-bit, stereo)
3d mesh format .obj
Physical Specifications Mounting system 4U 19" rack mount
Unit dimensions W: 435mm (17.126'')
H: 178mm (7'')
D: 593mm (23.35'’)
Unit weight 16.3kg
Unit + Rack Handles 621mm (24.45'')
Environmental Tolerances Temperature: 5-35°C (40°-95°F)
Humidity: 20%-80% (non-condensing)
Altitude: 0-8850 ft (0-2700m)
Hardware Specifications CPU Intel® Xeon® 2.5Ghz
Memory 24GB DDR4 RAM
Storage 2x 128GB SSD
(Internal System Drives)
1x 1.92TB Removable NVMe SSD (default)
General Network 1x 1Gb/sec Ethernet
2x 10Gb/sec Ethernet
High Speed Network 2x 25Gb/sec Ethernet
System Management Controller 1x Management Port (Reserved for future use)
Data/Peripherals 5x USB 3.0
Voltage 115-240V, 50-60Hz
Power Consumption 363 W adjusted
Software Features Operating System Windows 10 Enterprise SAC
disguise Proprietary Full production suite
Bundled Accessories Bundled Accessories Keyboard
Mouse + Mouse Mat
Power Cable (Plug-True1)
Hardware Guide
Backmounted Rails
Getting Started Guide
Support, Updates and Warranties License subscription package includes – Free software upgrades for the life of the machine
– 2 year return to base hardware warranty
vx 1 specification sheet
vx 1 specification sheet Download – 616 kb
VFC spec sheet
VFC spec sheet 2023 Download – 334KB
